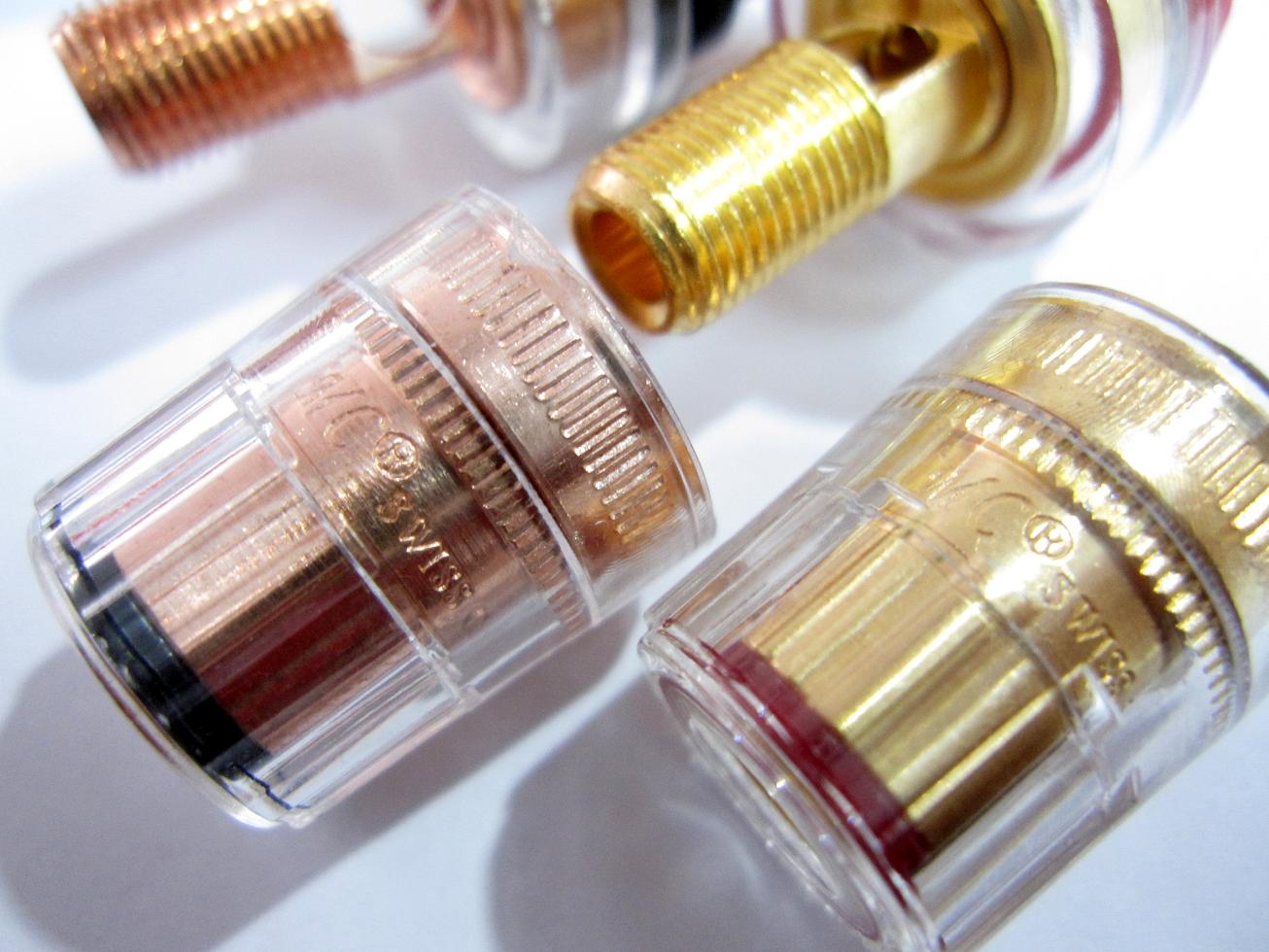

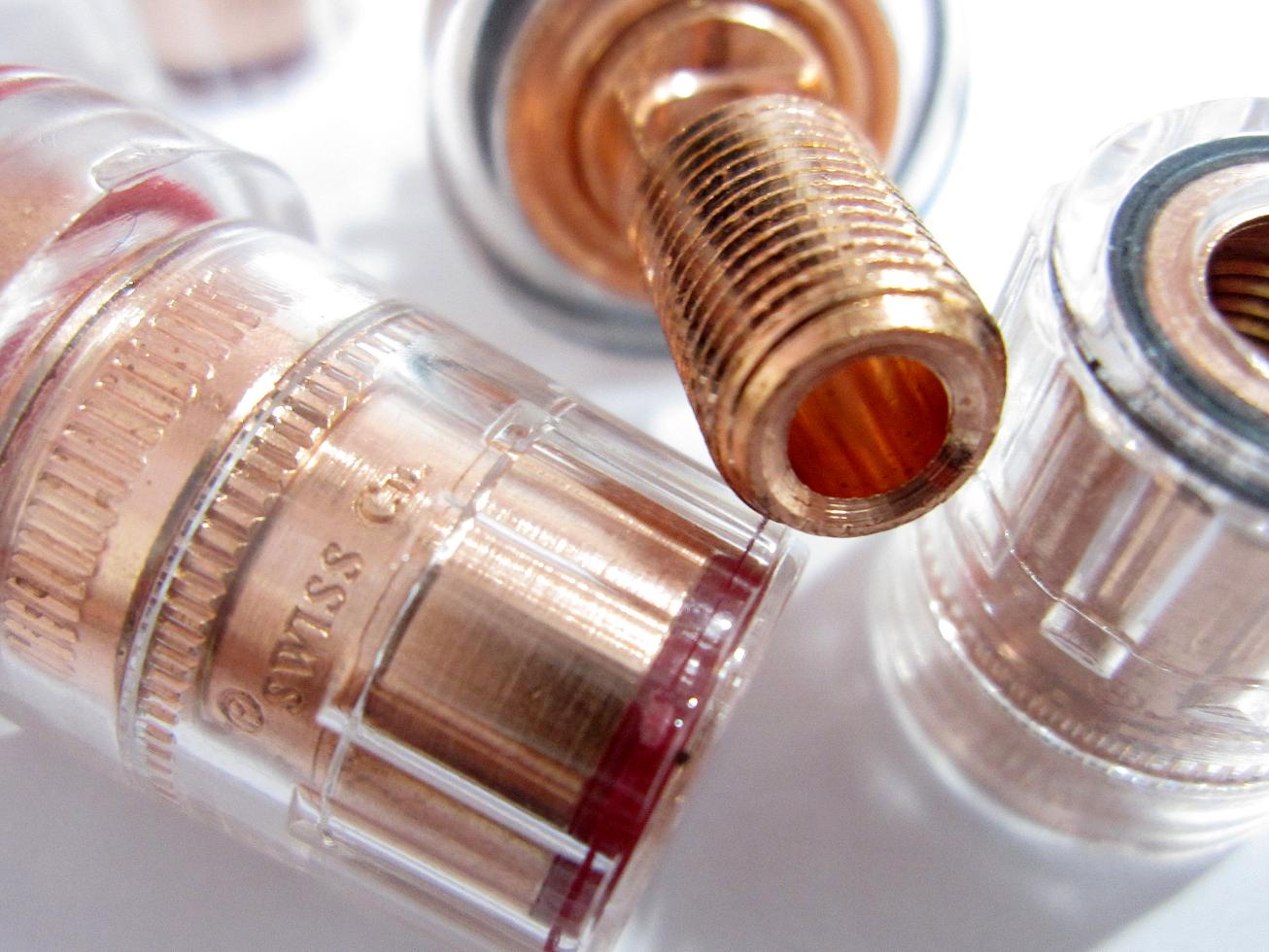

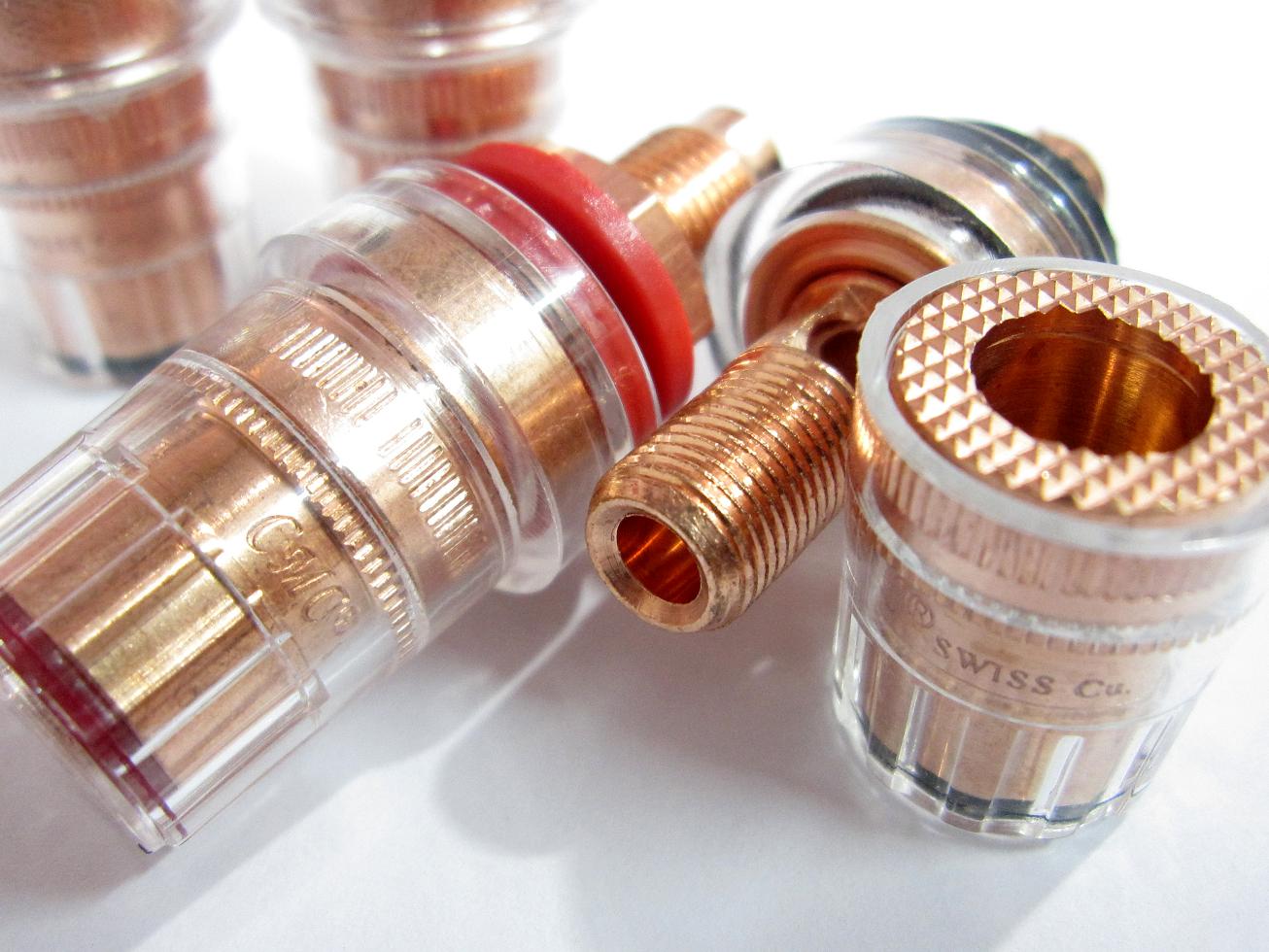

CMC-858-S-CU-R

Summary:
. High End Performance Binding posts
. R-Copper Plated


Features:
. Pure copper Conductor
. Polycarbonate(PC) insulation,
. POM spacer (red, black)
. Connections: Soldered or Set-screw
. Specified for core diameters up to 4.00mm

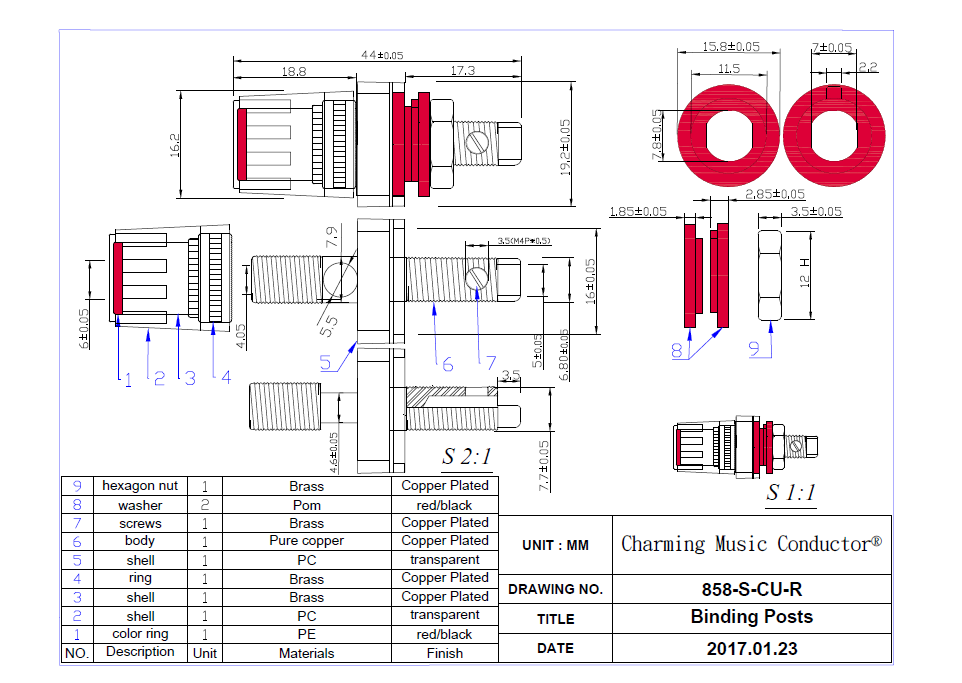

Dimensions:
. Mounting Insulation set  POM(Red, Black),16mm ±0.1mm diameter X 3mm± 0.1mm thick.
.. Body: 42mm ± 0.2mm overall length
.. Use of open holes: 12mm ±0.5mm
.. Maximum applicable panel thickness : 9.50mm
